NPT vs BSP Thread Fittings: Differences, Identification and Selection Guide

In the field of industrial piping connections, BSP (British Standard Pipe) and NPT (American National Pipe Taper) are the two most widely used pipe thread standards; however, they differ fundamentally in terms of thread angle, sealing principle, and application. We will analyze NPT vs. BSP in detail. They are incompatible with one another and must never be forcibly intermixed; doing so would result in leaks or even damage to the fittings.

Understanding NPT Threads

NPT stands for National Pipe Taper. It adheres to the American ANSI/ASME B1.20.1 standard.

Featuring a 60° thread angle and a tapered design, NPT threads rely on the elastic deformation of the internal and external threads during tightening; the crests and roots of the threads press tightly against one another to form a seal. Theoretically, NPT is self-sealing. However, in practical applications—to ensure an absolute seal—sealants (such as PTFE tape, or liquid or paste-form pipe thread sealants) are almost always used. It is classified as a “dry-seal” thread type.

NPT thread

It is primarily used in the United States, Canada, and other countries and industries that follow American standards. Common applications include the petroleum, chemical, hydraulic and pneumatic, fire protection, instrumentation, and general industrial piping sectors.

Understanding BSP Threads

BSP stands for British Standard Pipe. It encompasses two entirely distinct categories: BSPP and BSPT.

BSPP stands for British Standard Pipe Parallel. It features a 55° thread angle and a parallel (straight) thread design. The threads themselves do not provide a seal; instead, sealing relies on a face seal. This typically involves the use of an O-ring or a soft flat washer.

BSPT stands for British Standard Pipe Tapered. It features a 55° thread angle and a tapered thread design. It requires the assistance of PTFE tape or sealant to achieve a proper seal. It can be thought of as the “British equivalent of NPT.” However, it is neither interchangeable with nor compatible with genuine NPT threads.

BSP thread fittings are predominantly found in industrial and domestic applications across Europe, Asia, and Commonwealth nations. Common applications include hydraulics and heavy-duty industrial systems (BSPP parallel threads are frequently encountered in high-pressure hydraulic systems), pneumatic and automation systems, fluid and steam conveyance, and instrumentation connections.

What is the difference between BSP and NPT?

1. Fundamental Differences in Thread Profile Angle

BSP threads utilize a 55-degree thread profile angle, whereas NPT threads employ a 60-degree angle. This seemingly minor difference directly impacts sealing performance and connection methods.

2. Distinct Sealing Principles

BSP threads—specifically the parallel variant, BSPP—rely on sealing washers or sealants to achieve a leak-proof seal. NPT threads, conversely, feature a tapered design that achieves a seal through the deformation caused by the thread taper itself; they typically require the use of Teflon tape or sealant to facilitate a leak-free connection.

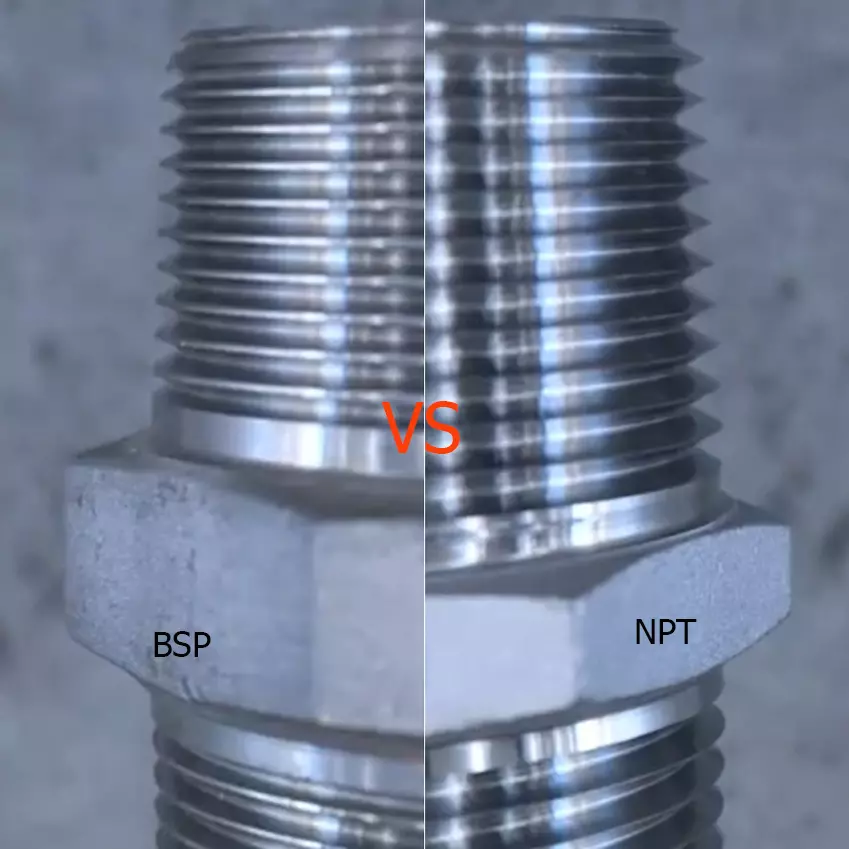

NPT vs BSP thread fitting

3. Differences in Pressure Ratings

Due to their tapered design, NPT threads are generally capable of withstanding higher operating pressures, making them particularly suitable for high-pressure applications. BSP threads, on the other hand, tend to perform more effectively in low-pressure systems.

4. Application Selection Guide

Choose BSP: Commonly used in equipment manufactured in Europe, Asia, Australia, and Commonwealth nations (e.g., JCB, Takeuchi, Kubota excavators, Hitachi/Link-Belt excavators). Ideal for low-pressure water and air systems.

Choose NPT: Primarily used in equipment destined for North American markets (such as the U.S. and Canada) and in high-pressure hydraulic fluid systems.

5. Interchangeability and Compatibility

Due to the inherent differences in thread angles and design between NPT and BSP fittings, these two types are not directly compatible. Attempting to connect these distinct thread types may result in leaks and potential system failure.

How to Quickly Identify BSP and NPT Fittings?

Step 1: Examine the threads to determine whether they are tapered or parallel.

Hold the fitting in your hand and observe the outer diameter of the threads with the naked eye, or measure it using a caliper.

If the thread diameter visibly decreases from the base to the tip, it is a tapered thread; this indicates it may be an NPT or BSPT fitting.

If the thread diameter remains consistent from the base to the tip, it is a parallel thread—specifically, a BSPP (G-thread) fitting.

Step 2: Examine the thread profile to determine whether the peaks and valleys are sharp or rounded.

The peaks and valleys of BSP threads are rounded, whereas those of NPT threads are flat and sharp. NPT threads feel significantly sharper to the touch than BSP threads.

Step 3: Count the threads to distinguish between NPT and BSPT.

If the thread you are examining is tapered, you can distinguish between NPT and BSPT by measuring the thread pitch (threads per inch, or TPI). This is the most critical step. Use a thread gauge—much like trying different keys in a lock—to find the specific blade that fits perfectly into the threads.

Note: For common 1/2-inch fittings, both BSPT and NPT feature 14 threads per inch (TPI). Although the thread count is identical, the gauges are not interchangeable due to the difference in thread angle (60° vs. 55°).

Step 4: Seek Professional Assistance If Unsure

If you are still unable to make a determination after following the steps above, the safest course of action is to consult the original equipment manufacturer’s (OEM) service manual or technical specifications. You may also consult a professional fitting supplier, as they can typically provide fast and accurate identification services.

Choosing the Right Thread Type for Your Application

Selecting the appropriate thread type is crucial for the safety of any piping system.

First, verify the thread standard specified by the equipment manufacturer.

The simplest and most reliable approach is to select components based on the thread standards designated by the equipment manufacturer. Consider your geographical location: if you are in North America—or are servicing equipment intended for North America—NPT fittings are the preferred choice. If the equipment originates from Europe or Asia, and the port features a sealing gasket or O-ring, BSPP fittings are recommended; however, if there is no O-ring and the connection utilizes a tapered thread, you should select BSPT fittings.

Second, consider the system’s operating pressure; for high-pressure systems, reliable sealing is of paramount importance.

•  BSPP fittings with O-ring seals offer a high degree of reliability.
•  BSPT fittings are suitable for medium-to-high pressure applications.
•  NPT fittings can also be used in high-pressure environments, provided they are installed correctly and utilized in conjunction with appropriate sealing materials.

Finally, consider ease of maintenance and cost.

If the equipment requires frequent disassembly and reassembly, the choice of thread type can significantly impact maintenance costs.

With BSPP fittings, sealing relies on an O-ring rather than the threads themselves; consequently, repeated disassembly results in minimal thread wear, ensuring more stable sealing performance, while the cost of replacing the O-ring remains low.

In contrast, BSPT and NPT fittings require a thorough inspection for thread wear every time they are reinstalled, as well as the reapplication of PTFE tape or thread sealant. For equipment requiring frequent maintenance, BSPP fittings therefore represent a more ideal choice.

FAQ

How do I convert from BSP to NPT?

Use a dedicated adapter fitting. For example, an adapter with a male BSP thread on one end and a female NPT thread on the other. You must *never* attempt to force the two directly together.

Are BSP and NPT interchangeable?

They are absolutely *not* directly interchangeable. This is because their thread profile angles (BSP is 55°, NPT is 60°) and thread shapes differ. Forcing them together will damage the threads, leading to severe leaks or seizing.

Which is better: BSP or NPT?

Neither is inherently “better”; rather, it depends entirely on applicability. Both offer equally reliable performance. The choice of standard depends entirely on the industry conventions in your region (North America typically uses NPT, while other regions mostly use BSP) or the specific interface requirements of your equipment. Choosing the correct standard for the job is what makes it the best choice.

Can BSP fit into NPT?

No, they are not compatible; BSP threads have a profile angle of 55 degrees, whereas NPT threads have a profile angle of 60 degrees.

Is BSP the same as NPT?

No, they are completely different.

Can I use a BSP to NPT adapter?

Yes. Using a proper adapter is the only correct way to connect a BSP component to an NPT component. Never attempt to connect them directly without an adapter.

What is the difference between NPT and BSPT threads?

Although NPT and BSPT threads appear similar in appearance, they adhere to different standards and are not the same type of thread. NPT threads comply with American standards and feature a 60° thread angle, whereas BSPT threads comply with British standards and feature a 55° thread angle. NPT threads are used primarily in the North American market, while BSPT threads are used in European and Asian markets; the two types are not directly interchangeable.
