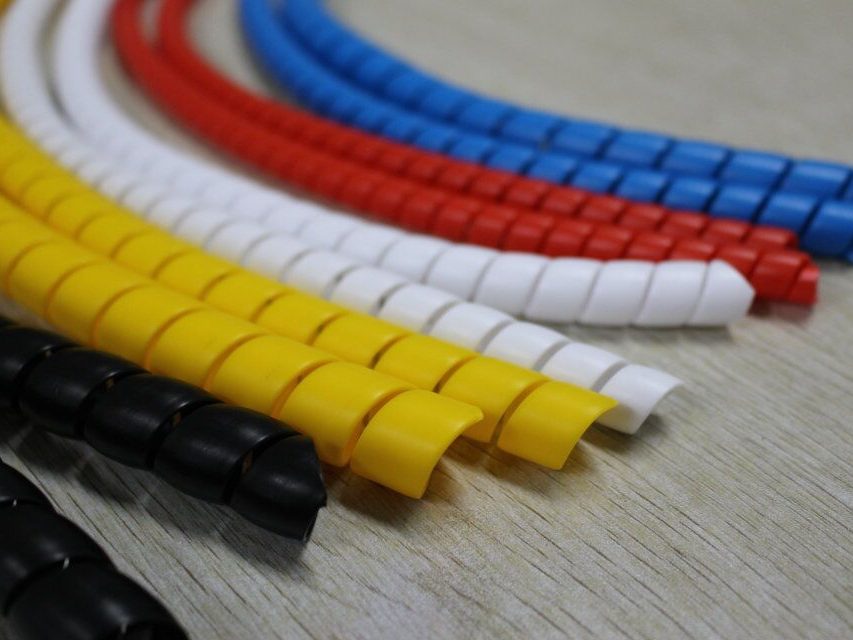

PP spiral protective sleeves, also known as corrugated hose sleevesor PP spiral guard, they are made of high-strength polypropylene material and have a continuous spiral structure. They possess basic characteristics such as resistance to bending, tensile strength, insulation, and scratch resistance. They can protect hydraulic hoses, industrial hoses, cables, and wire harnesses. When external impact or friction occurs, the spiral gaps can disperse stress, absorb vibration, and prevent rigid damage through the material’s inherent ductility.
Features of Plastic Spiral Hose Protectors
Wear-resistant and durable: Made of high-quality PP material, it has excellent wear resistance, extending its service life. Protects hoses from wear, crushing, cutting, and UV damage.
Oil and acid/alkali resistant: PP material has excellent chemical corrosion resistance, is oil-resistant and easy to clean.
Flexible installation: The unique spiral shape maintains good flexibility, allowing it to easily wrap around hoses of different diameters, adapting to various industrial applications.
Heat dissipation and flame retardant: The spiral structure leaves gaps, which is conducive to heat dissipation of internal cables. PP materials with added flame retardants are also available on the market, achieving UL94 V-2 or higher flame retardant ratings.
Multi-size and multi-color customized production: Available in various specifications according to hose diameter, and supports customized lengths and colors.
Lightweight and environmentally friendly: The material is lightweight and easy to install, while also meeting environmental requirements and being reusable.
PP Spiral Guard Technical Specifications
Structure: Open spiral design for easy wrapping and installation
Material: Polypropylene (PP)
Color: Black / Yellow / Red / Customizable
Inner Diameter Range: 8mm-100mm for Flat Surface spiral PP hose protective sleeve
8mm-200mm for Arc Surface spiral PP hose protective sleeve
Temperature: -50°C to +80°C
Length: 10m / 20m / 100m / Customizable
Main Functions: Abrasion resistance, UV resistance, compression resistance, extends hose lifespan
Classification of PP Spiral Guard
PP spiral protective sleeves are mainly divided into two types based on their cross-sectional shape: curved (circular) and flat. These two designs have different advantages and are suitable for different applications.

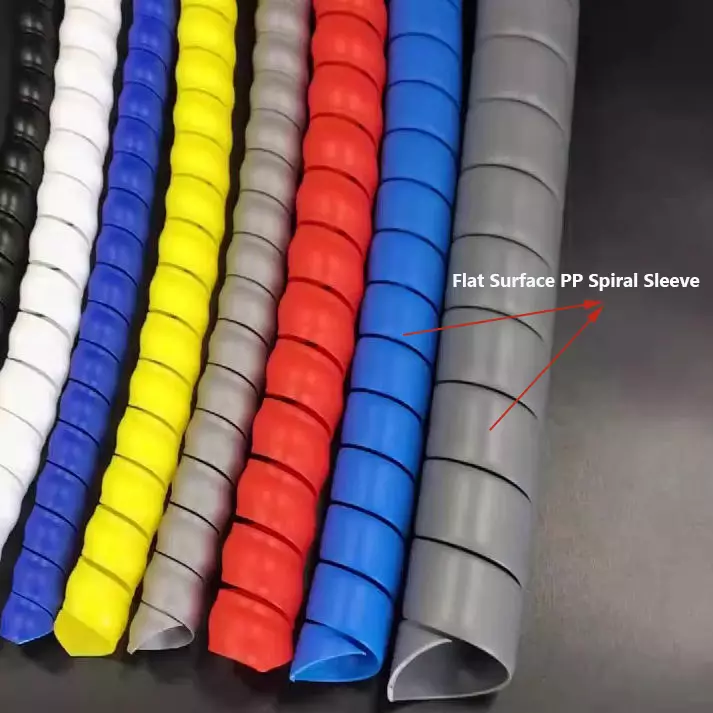

Arc and Flat Surface PP spiral guard
Flat Surface spiral PP hose protective sleeve
Its cross-section is distinctly flattened or oval-shaped, and when uncoiled, it resembles a flat ribbon. The advantage is space saving; the flat design significantly reduces the overall installation thickness, preventing interference with surrounding components. It can be more easily and securely attached to flat surfaces such as equipment panels and wall panels, resulting in a neater appearance and less movement.
However, its compressive strength and uniform protection are inferior to those of curved protective covers.
| Code | Size | ID(mm) | OD(mm) | Thickness(mm) | Width(mm) |
| SFP008 | 8 | 8 | 10 | 1 | 12 |
| SFP010 | 10 | 10 | 12 | 1 | 12 |
| SFP012 | 12 | 12 | 14 | 1 | 12 |
| SFP014 | 14 | 14 | 16 | 1 | 13 |
| SFP016 | 16 | 16 | 18.8 | 1.4 | 14.5 |
| SFP018 | 18 | 18 | 21.2 | 1.6 | 15.5 |
| SFP019 | 19 | 19 | 22.2 | 1.6 | 15.5 |
| SFP021 | 21 | 21 | 24.6 | 1.8 | 18.5 |
| SFP022 | 22 | 22 | 25.6 | 1.8 | 18.5 |
| SFP025 | 25 | 25 | 28.6 | 1.8 | 21.5 |
| SFP026 | 26 | 26 | 29.6 | 1.8 | 21.5 |
| SFP028 | 28 | 28 | 31.8 | 1.9 | 22.5 |
| SFP030 | 30 | 30 | 34 | 2 | 23 |
| SFP032 | 32 | 32 | 36 | 2 | 23 |
| SFP035 | 35 | 35 | 39 | 2 | 24 |
| SFP038 | 38 | 38 | 42 | 2 | 24 |
| SFP040 | 40 | 40 | 45.6 | 2.8 | 25 |
| SFP042 | 42 | 42 | 48 | 3 | 26 |
| SFP045 | 45 | 45 | 51 | 3 | 27 |
| SFP048 | 48 | 48 | 54 | 3 | 27 |
| SFP050 | 50 | 50 | 56 | 3 | 27 |
| SFP051 | 51 | 51 | 57 | 3 | 27 |
| SFP060 | 60 | 60 | 66 | 3 | 26.5 |
| SFP063 | 63 | 63 | 69 | 3 | 27 |
| SFP068 | 68 | 68 | 74 | 3 | 30 |
| SFP074 | 74 | 74 | 84.4 | 5.2 | 47.5 |
| SFP080 | 80 | 80 | 89 | 4.5 | 40.5 |
| SFP088 | 88 | 88 | 98 | 5 | 43 |
| SFP100 | 100 | 100 | 110 | 5 | 45 |
Arc Surface spiral PP hose protective sleeve
This is the most common and classic design, with a circular or near-circular cross-section, resembling a spirally wound tube. It offers balanced protection in all directions; the circular structure evenly distributes pressure, impact, and friction from all angles, providing comprehensive protection for the internal cables, especially in environments where rolling and multi-directional friction may occur. The cylindrical structure has superior compressive strength, effectively preventing the protective sleeve from being flattened and maintaining the internal space. It is the preferred choice for most standard applications.
However, in spaces requiring extremely compact and flat installation, it may occupy more thickness space.
| Code | Size | ID(mm) | OD(mm) | Thickness(mm) | Width(mm) |
| SAP008 | 8 | 8 | 11 | 1.5 | 10 |
| SAP010 | 10 | 10 | 12.8 | 1.4 | 11 |
| SAP012 | 12 | 12 | 15 | 1.5 | 12 |
| SAP014 | 14 | 14 | 17 | 1.5 | 13 |
| SAP016 | 16 | 16 | 19.6 | 1.8 | 15 |
| SAP018 | 18 | 18 | 21.6 | 1.8 | 16 |
| SAP020 | 20 | 20 | 24 | 2 | 18 |
| SAP021 | 21 | 21 | 25 | 2 | 18 |
| SAP022 | 22 | 22 | 26 | 2 | 18 |
| SAP023 | 23 | 23 | 27 | 2 | 19.2 |
| SAP024 | 24 | 24 | 28 | 2 | 21 |
| SAP025 | 25 | 25 | 29.8 | 2.4 | 21.5 |
| SAP028 | 28 | 28 | 33.2 | 2.6 | 23 |
| SAP030 | 30 | 30 | 34.8 | 2.4 | 22.5 |
| SAP032 | 32 | 32 | 37.6 | 2.8 | 23 |
| SAP035 | 35 | 35 | 40.6 | 2.8 | 24 |
| SAP038 | 38 | 38 | 44 | 3 | 25 |
| SAP040 | 40 | 40 | 47 | 3.5 | 27 |
| SAP042 | 42 | 42 | 49 | 3.5 | 25 |
| SAP045 | 45 | 45 | 53 | 4 | 28 |
| SAP048 | 48 | 48 | 56 | 4 | 28 |
| SAP050 | 50 | 50 | 59 | 4.5 | 29 |
| SAP052 | 52 | 52 | 61 | 4.5 | 29 |
| SAP055 | 55 | 55 | 64 | 4.5 | 30 |
| SAP060 | 60 | 60 | 69 | 4.5 | 30 |
| SAP063 | 63 | 63 | 72 | 4.5 | 30 |
| SAP065 | 65 | 65 | 74 | 4.5 | 30 |
| SAP067 | 67 | 67 | 76 | 4.5 | 30 |
| SAP070 | 70 | 70 | 79 | 4.5 | 34 |
| SAP074 | 74 | 74 | 84 | 5 | 34 |
| SAP075 | 75 | 75 | 85 | 5 | 42 |
| SAP080 | 80 | 80 | 91 | 5.5 | 45 |
| SAP088 | 88 | 88 | 99 | 5.5 | 45 |
| SAP090 | 90 | 90 | 101 | 5.5 | 45 |
| SAP100 | 100 | 100 | 112 | 6 | 50 |
| SAP150 | 150 | 150 | 162 | 6 | 38 |
| SAP200 | 200 | 200 | 210 | 5 | 50 |
How to choose between a arc spiral protective guard and a flat spiral protective guard?
There is no inherent difference in quality between curved and flat protective sleeves; the only difference is their shape. When choosing, consider the following points:
First, consider the installation space. If there is ample space, a curved type is preferable for more comprehensive and reliable protection. If space is limited, a flat spiral protective sleeve is recommended.
Consider whether the protected object will move during operation. For multi-directional bending and twisting, choose a curved spiral protective sleeve. If the movement is primarily reciprocating extension and contraction on a single plane, a flat type can be used.
Consider the shape of the cable or hose: For round cables or hoses, both types are suitable, but the curved type provides a better fit. For flat cables or ribbon cables, a flat protective sleeve is preferred.
PP spiral protective sleeve application
Application:Such hose sleeve is economical and convenient to protect the hydraulic and pneumatic hose, cable, wire and rope from premature wear.
It can also extend the service life of PP spiral guard. Spiral wrap tubing can bear the extreme climate and work conditions. Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards. PP Spiral Guard Wrap’s open spiral design makes it easy to install in the field, without the need to disconnect lines.
